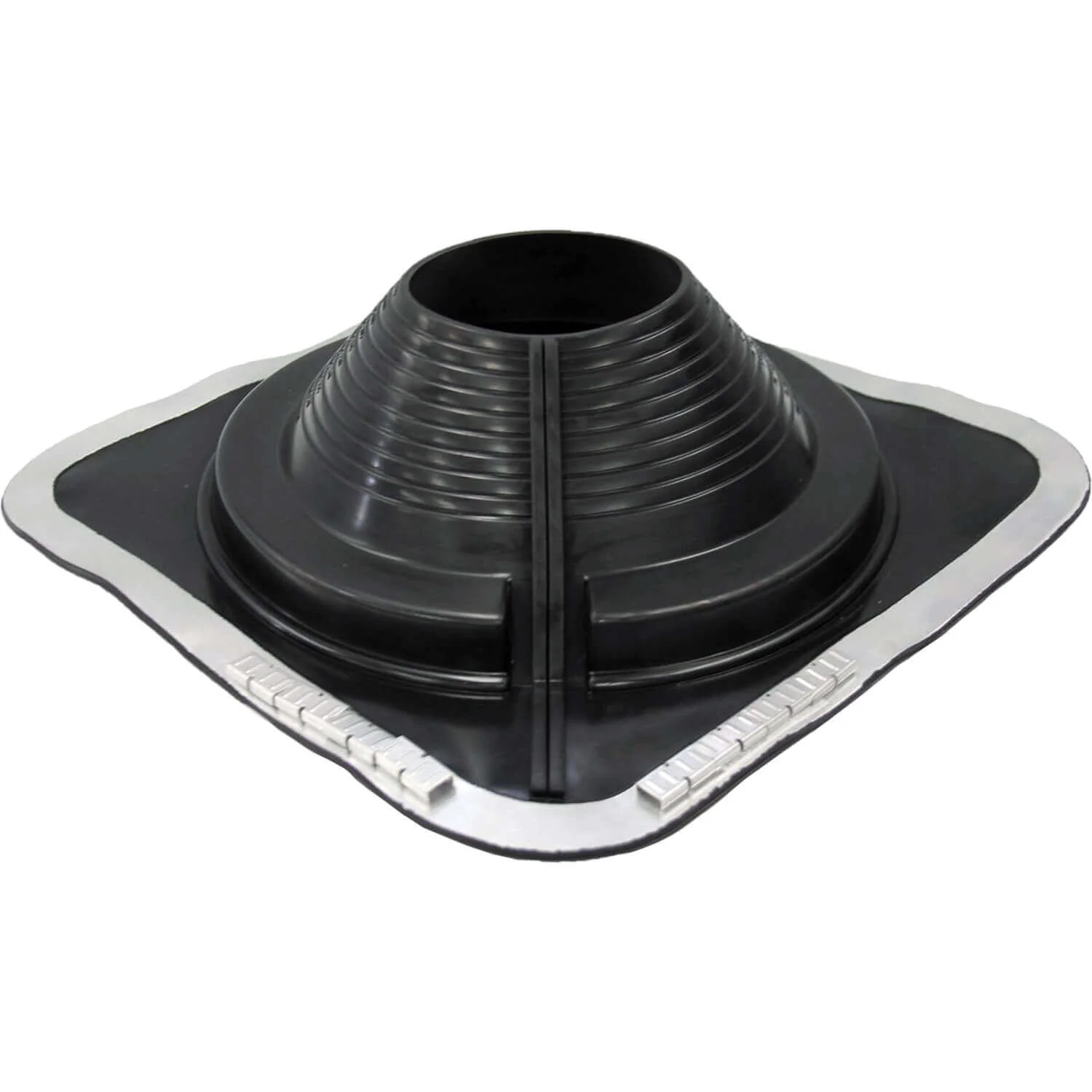

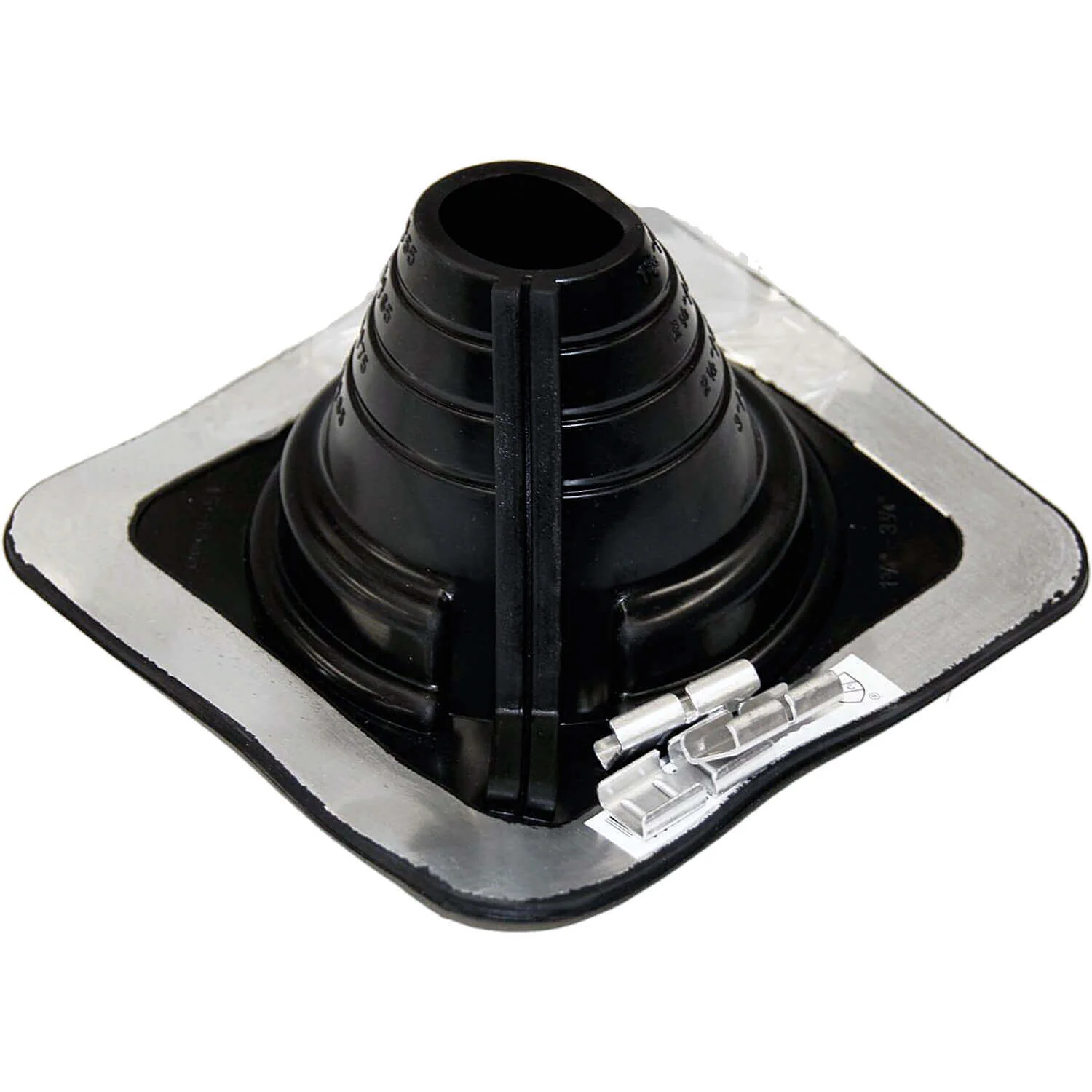

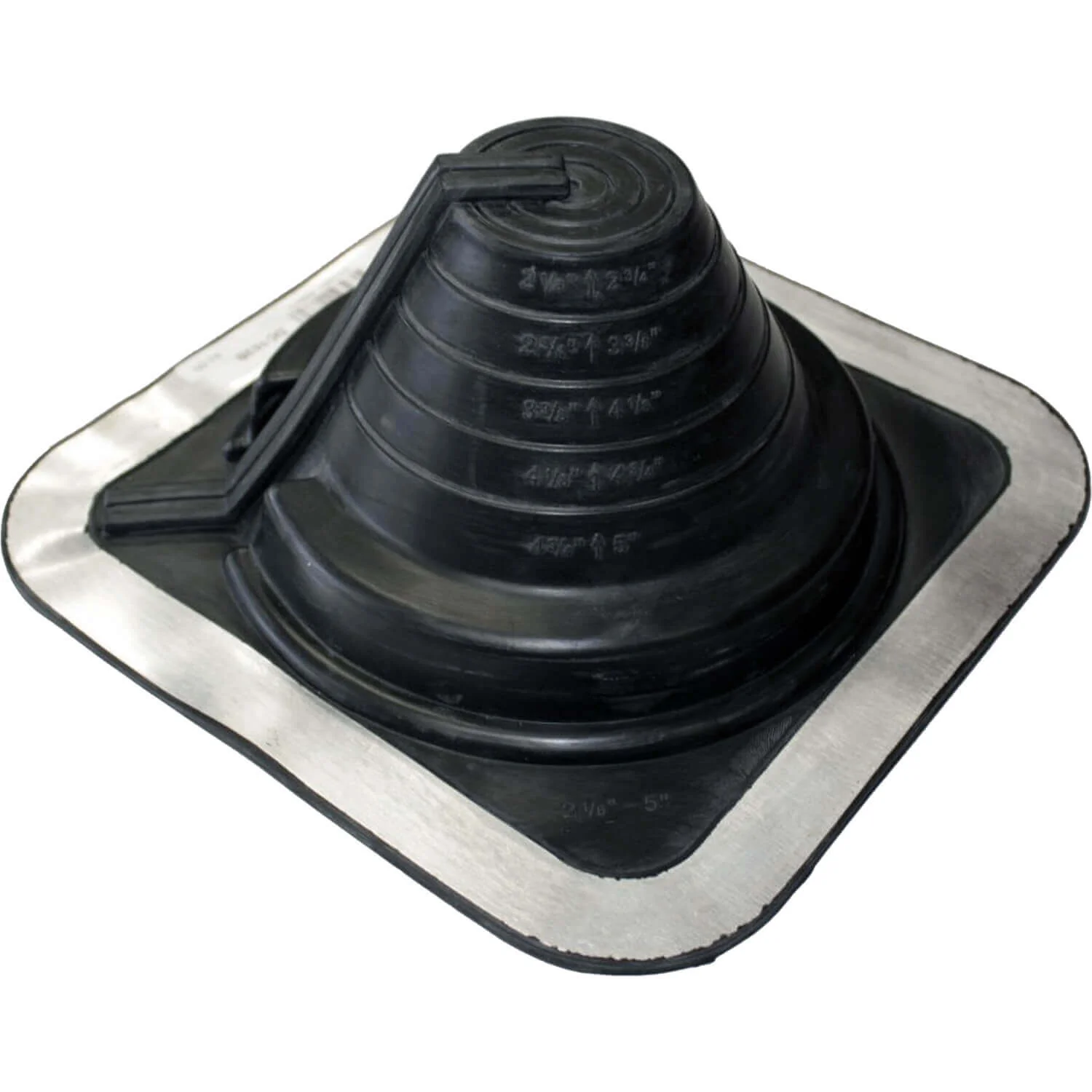

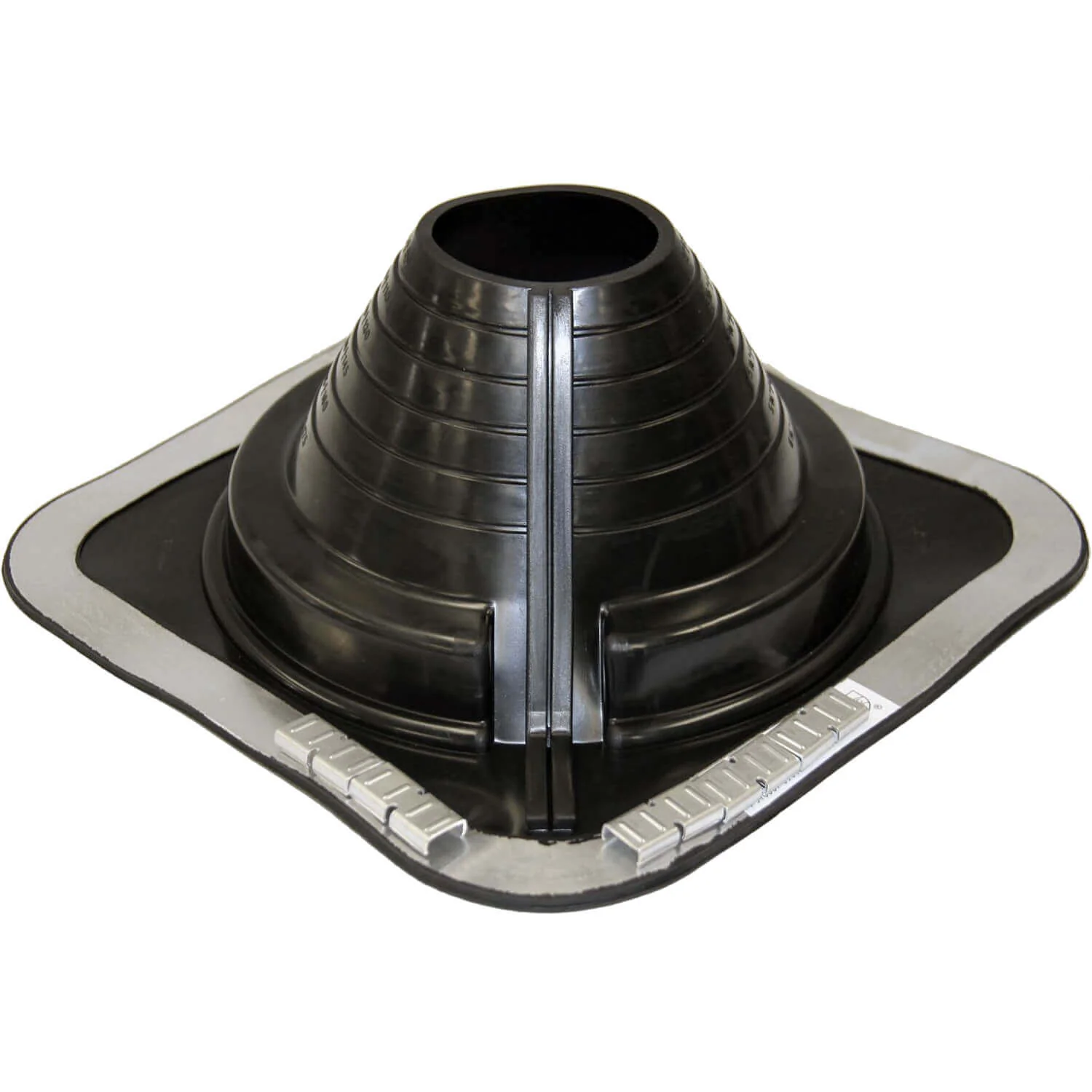

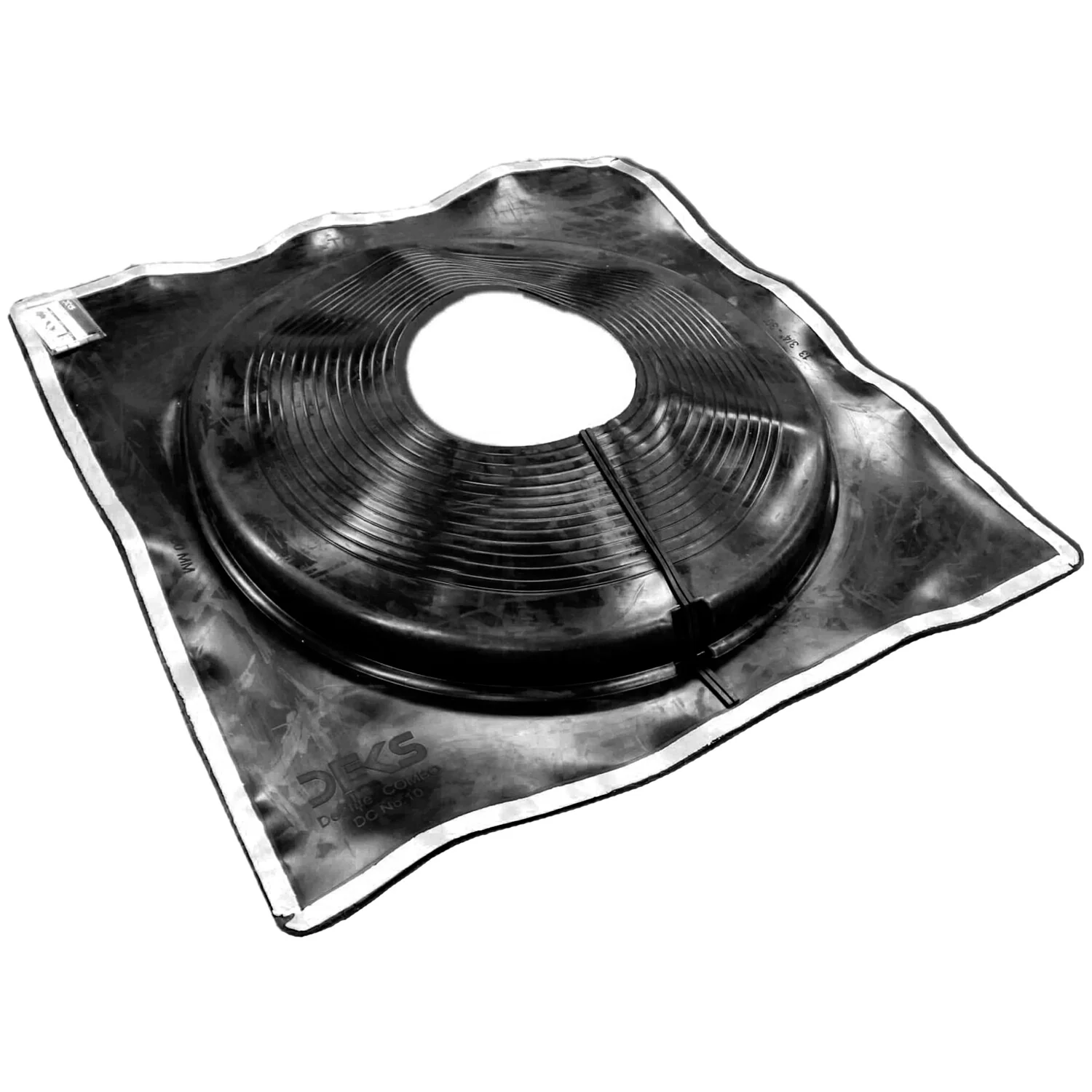

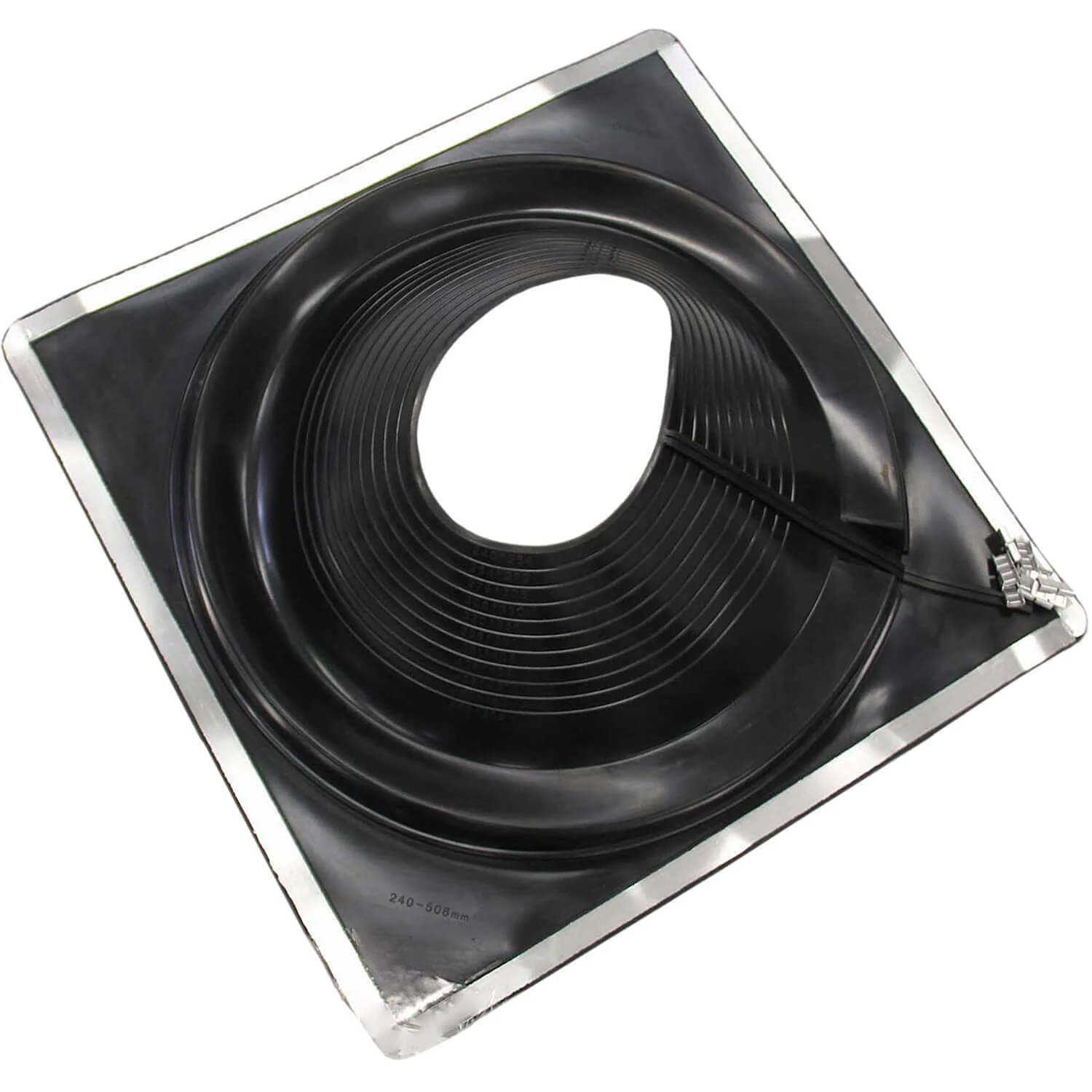

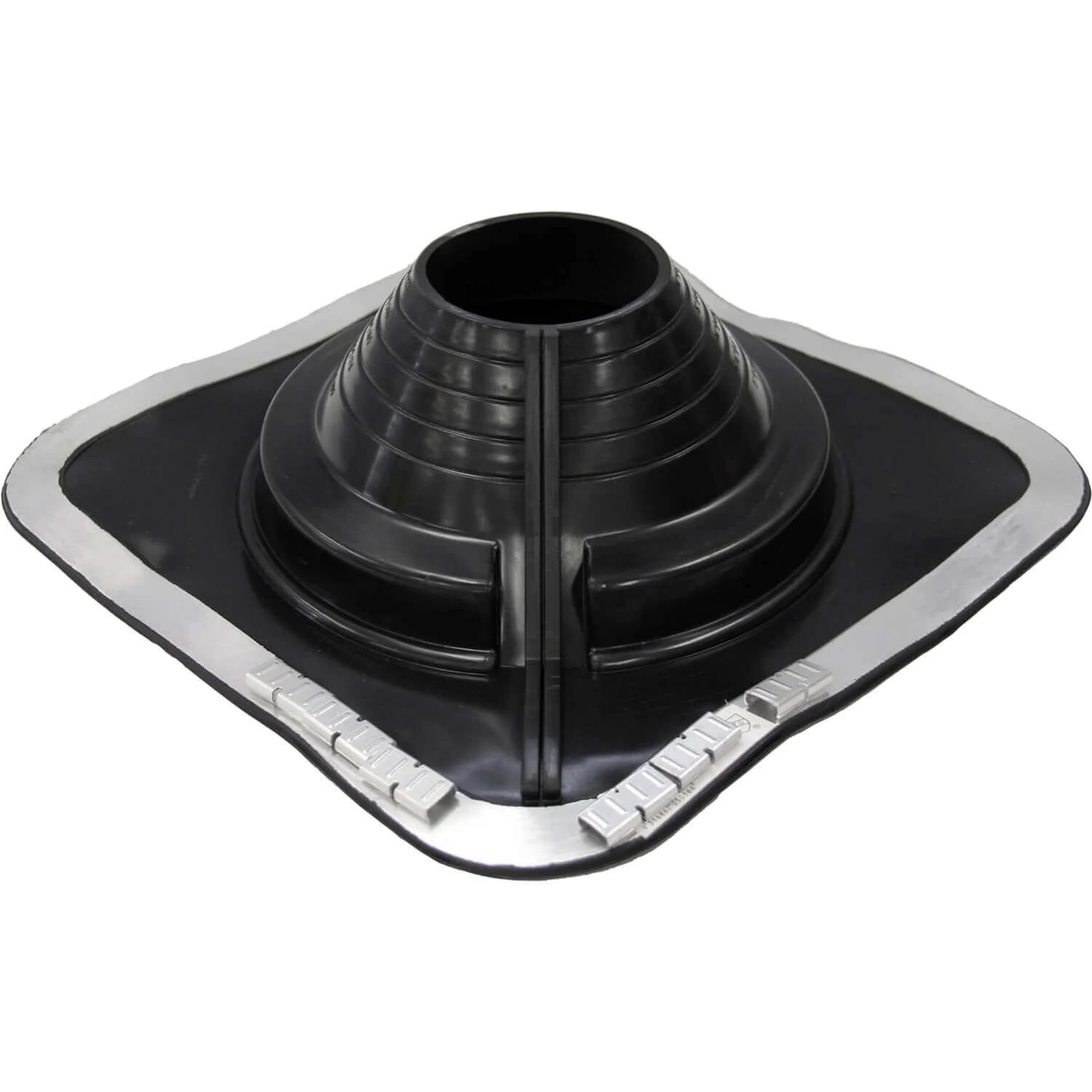

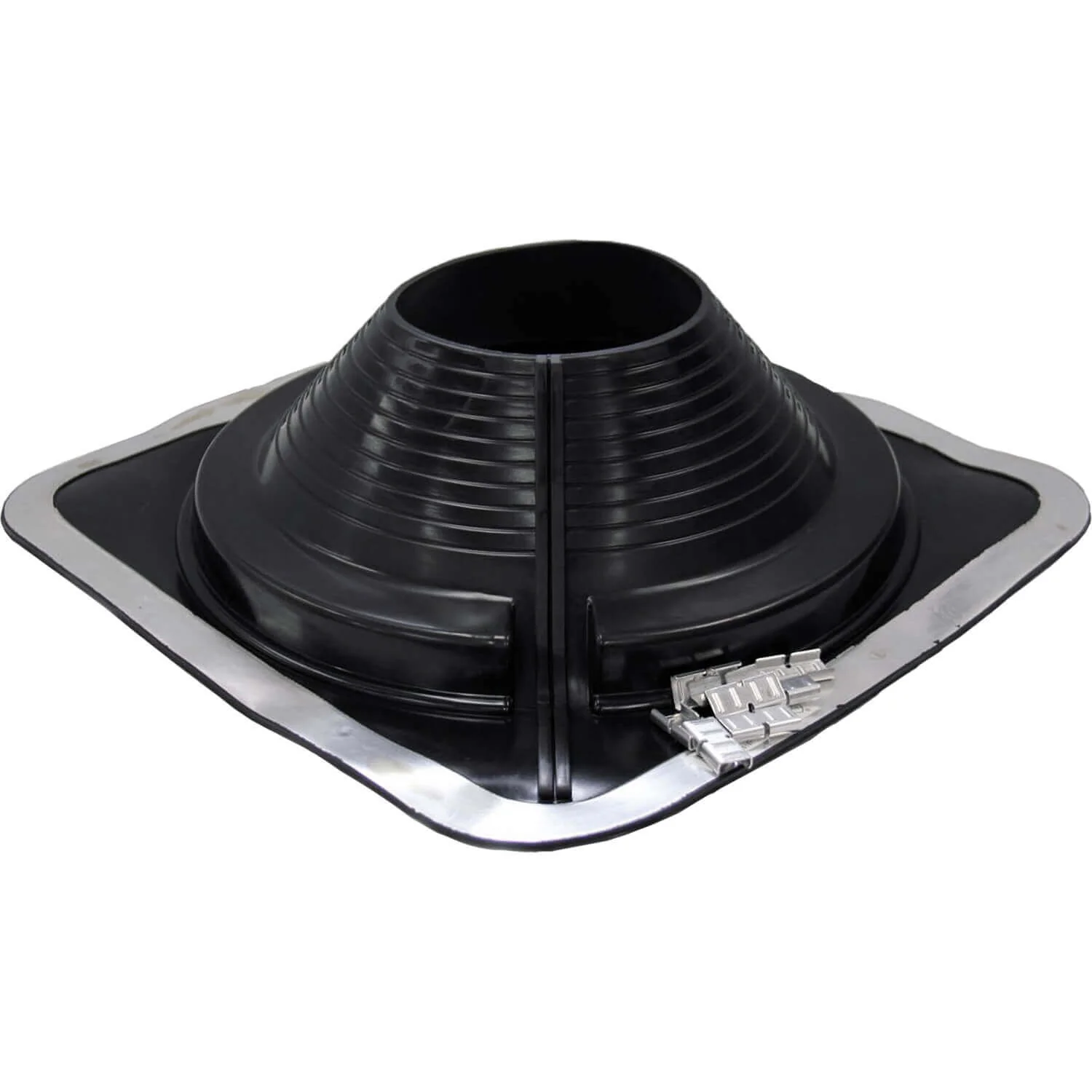

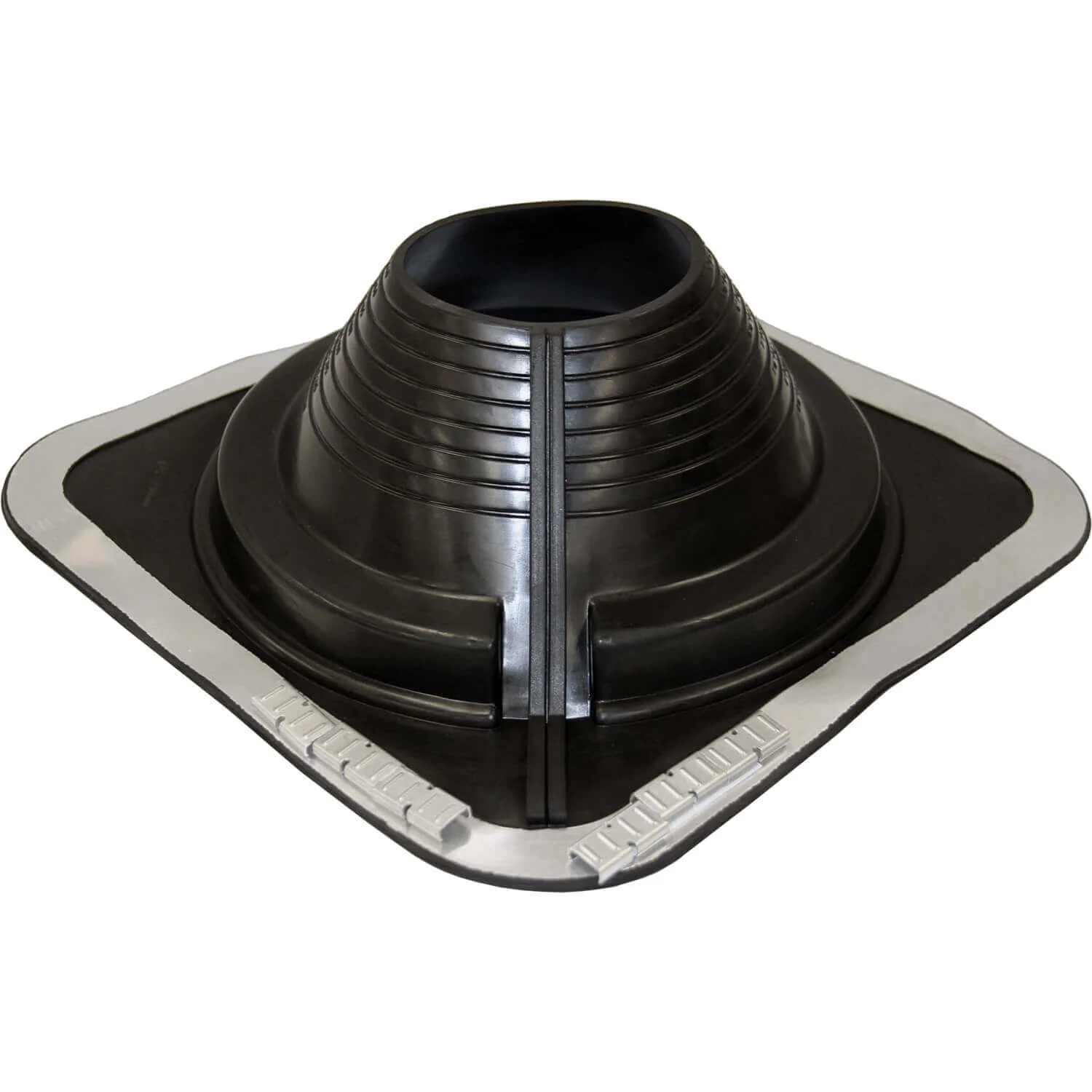

BLACK SQUARE BASE COMBO PIPE FLASHING BOOT: EPDM Square Base Flexible Pipe Flashing
BLACK SQUARE BASE COMBO PIPE FLASHING BOOT: EPDM Square Base Flexible Pipe Flashing
✔Rated for High Temperature with Continuous Service Temperature Ranges of -58F to 239F
✔This Dektite Product is Unique in Design, Can be Installed Like a Standard Pipe Flashing or
✔Where the Height of Pipe is Difficult to Reach or Existing Obstruction Blocks Top of Pipe

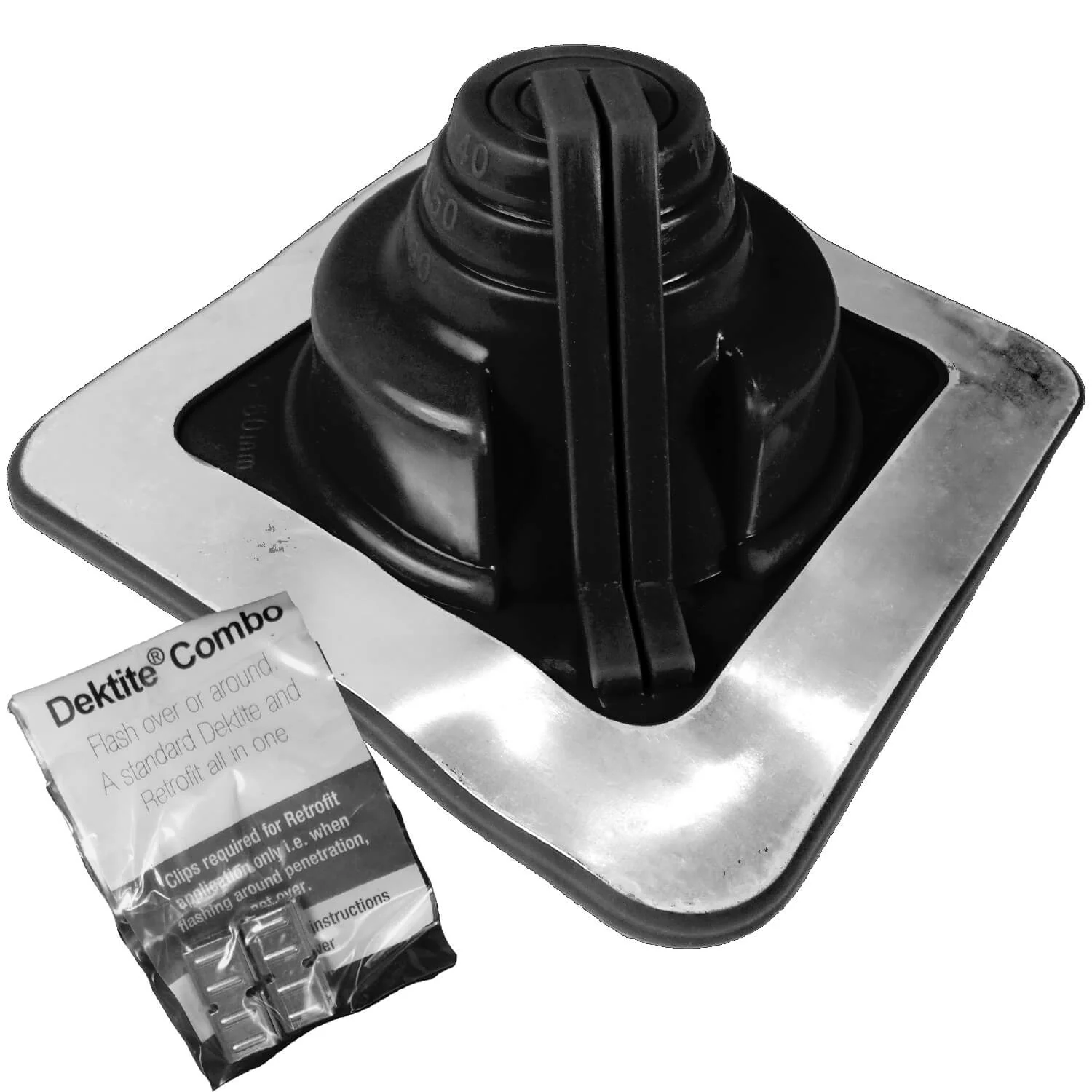

✔Flashing Can Be Cut Along the Seam and Resealed With Provided Clips
✔Easily Customized on Site using Heavy Scissors or Shears.
✔EPDM Rubber Boot with Flexible Base (Aluminum Collar) Seals Against Uneven Metal Roofing Easily
Works with Metal Roof Pitches up to 12/12 (0 to 45 degrees)
On a Roof with a 10/12 to 12/12 Pitch (45 Degrees) Dektite Recommends You Use a Square Base Pipe Flashing Installed With The Base Tip Pointed Towards Roof Top. When Used With Deep Ribbed Profile Roofing Panels With 1-1/2" Deep Corrugation Or More, Consider Using Next Size Up That Will Accommodate The Same Diameter Pipe
Manufacturers recommended temperature ranges are clearly stated Please verify this product will meet specifications of your installation or possible product damage may occur
Installation Instructions - Available Here
50 Count #10 x 1-1/2" Roofing Screws for Dektite Install Available Here
| Product Number | Fits Outside Pipe Diameter | Base Size | Temperature Range | Flashing Material |
|---|---|---|---|---|
| DC101BC | 1/4" to 2-1/2" | 5-1/2" x 5-1/2" | -58F to 239F | EPDM |
| DC102BC | 1/4" to 3-1/4" | 7" x 7" | -58F to 239F | EPDM |
| DC103BC | 1/4" to 5" | 8-3/4" x 8-3/4" | -58F to 239F | EPDM |
| DC104BC | 3" to 7" | 11-1/4" x 11-1/4" | -58F to 239F | EPDM |
| DC105BC | 4-1/4" to 7-1/2" | 14-1/4" x 14-1/4" | -58F to 239F | EPDM |
| DC106BC | 5" to 9 | 14-1/4" x 14-1/4" | -58F to 239F | EPDM |
| DC107BC | 6" to 11" | 17-3/4" x 17-3/4" | -58F to 239F | EPDM |
| DC108BC | 7" to 13" | 17-3/4" x 17-3/4" | -58F to 239F | EPDM |
| DC109BC | 9-1/2" to 20" | 27" x 27" | -58F to 239F | EPDM |
| DC110BC | 13-3/4" to 30" | 38-1/2" x 38" | -58F to 239F | EPDM |
Original: $26.95
-65%$26.95
$9.43More Images
